Social Media, Twitter API, and R

tutorial

python

A workshop on gathering, processing, and analyzing Twitter API data with R, created for the 2016 Population Association of America Annual Meeting.

Author

Kivan Polimis

Published

April 17, 2016

This post is a workshop that I created for a social media workshop during the 2016 Population Association of America Annual Meeting in Washington, D.C (April).

All relevant code will eventually be available on my github

Introduction

We are going to learn various R functions for gathering, processing and analyzing Twitter API data. Our goal is to collect tweets by location and subject. This workshop is aimed at graduate students with some familiarity with R. The examples explored will gather tweets made in the Washington, D.C. area as well as tweets that mention presidential candidates Hillary Clinton and Donald Trump. If we have time, we will explore methods to map our results nationally and show where people are talking about the candidates.

Overview

Setup
Obtain Twitter credentials
Install R packages
Search Twitter API
Map results (optional)

Setup

Software

Essential: R
Recommended: RStudio

RStudio is a free and open-source integrated development environment (IDE) for R

If you have never used R before, or if you feel that you need a refresher, we recommend that you go over this short R tutorial

Obtain Twitter credentials

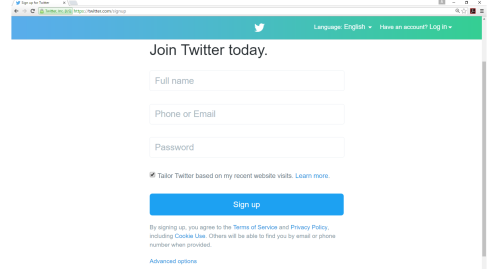

Create a Twitter account

2. If you have a Twitter account, but it is not verified with a phone, you would need to verify the account, by adding a mobile phone number. Here is a link to the instructions

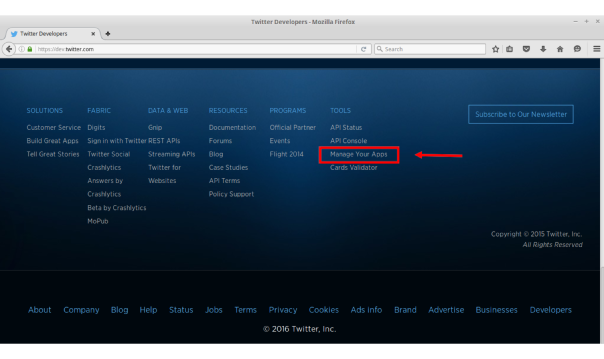

3. Create a new app Scroll to the bottom of the page and select Manage Your Apps under the Tools column (see highlighted box below)

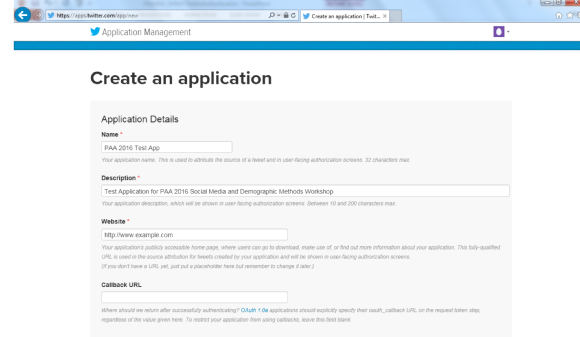

Fill in your App with the following information
The App name must be unique, edit “INITIALS” with your initials
Name: PAA 2016 Test App “INITIALS”
Description: Test Application for PAA 2016 Social Media and Demographic Methods Workshop
Website: http://www.example.com
You should leave the “callback website” field empty

4. Obtain your consumer key, consumer secret, access token and access token secret. You will insert these credentials below

Select Keys and Access Tokens tab
Consumer Key and Consumer Secret are at the top of the page
Scroll to the bottom of the page to Token actions and create Access Token and Access Token Secret

Install R packages

You will need to have the following packages installed for the core of this workshop:

twitteR
streamR
ROAuth
RCurl
dplyr

Before we can started, we need to clear our workspace, set a working directory, and load packages (you may need to install these packages the first time run this file). Fill in your working directory below by replacing “FILL ME IN” with the file path of your workshop folder

rm(list=ls())
setwd("FILL ME IN/PAA_2016_SMDM_Workshop/Twitter")
#' uncomment the command below to install the necessary packages
#install.packages(c("twitteR","streamR","ROAuth","dplyr","base64enc"))

#' Pablo Barbera, author of streamR, has written additional functions for Twitter analysis
#' uncomment the two commands below to download and add these functions to your environment with source
#download.file("https://raw.githubusercontent.com/pablobarbera/social-media-workshop/master/functions.r",
              "functions_by_pablobarbera.R")
#source("functions_by_pablobarbera.R")
source("twitterFunctions.R") # few functions to clean data
library(twitteR)
library(streamR)
library(ROAuth)
library(RCurl)
library(dplyr)
library(base64enc)

Twitter API Authentication

We will use two packages, streamR and twitteR, to retrieve tweets from the Twitter API. To access the functions in these packages, we will complete two authentication procedures.

streamR
- Allows authorized applications to access Twitter’s Streaming API
- real-time collection and monitoring of tweets
- uses stored authentication
twitteR
- Allows authorized applications to access Twitter’s API
- read and post tweets with API responses
- uses direct authentication

#' Twitter credentials for streamR and twitteR authentication
consumer_key <- "FILL ME IN"
consumer_secret<- "FILL ME IN"
access_token<- "FILL ME IN"
access_token_secret<- "FILL ME IN"

#' parameters and URLs for streamR authentication
reqURL <- "https://api.twitter.com/oauth/request_token"
accessURL<- "https://api.twitter.com/oauth/access_token"
authURL<- "https://api.twitter.com/oauth/authorize"

#' Note:  You only need to create an authentication object for streamR once
#' Microsoft Windows users need to uncomment the following command to download a cert file
#download.file(url="http://curl.haxx.se/ca/cacert.pem", destfile="cacert.pem")

#' create an object "cred" that will save the authenticated object for later sessions
twitCred<- OAuthFactory$new(consumerKey=consumer_key,consumerSecret=consumer_secret,
                            requestURL=reqURL,accessURL=accessURL,authURL=authURL)

#' executing twitCred$handshake will redirect you to a website and provide your app a PIN
#' insert the PIN in the R console after you run this line
#' you can save authenticated credentials for later sessions
#' for later use, uncomment the following command in a folder that contains twitCred.RData
#load("twitCred.RData")
twitCred$handshake(cainfo = system.file("CurlSSL", "cacert.pem", package = "RCurl"))
save(twitCred, file = "twitCred.RData")

#' setup direct Twitter authentication for twitteR functions
#' you will be prompted to cache authentication token
#' you will need to repeat this step unless you are running analysis from a location with a
#' cached authentication token
setup_twitter_oauth(consumer_key, consumer_secret, access_token, access_token_secret)

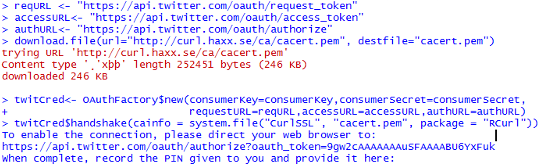

Twitter authentication for streamR (Windows output with download.file executed shown)

Analysis

Search tweets by location

Search for tweets by location using twitteR package functions. The functions below interact with the trend portion of the Twitter API. Use Where on Earth Identifiers (WOEID) for locations

availableTrendLocations
getTrends

View column names and small subset of observations with glimpse command

availableTrendLocations()
woeid = availableTrendLocations()
glimpse(woeid)

#' get trending D.C. area tweets
DC_tweets = getTrends(2514815)
glimpse(DC_tweets)

#' trending hashtags
head(DC_tweets$name)

## [1] "Rockets"       "Dwight Howard" "Paul George"   "#MentorIRL"
## [5] "Raptors"       "#DCvTOR"

getCommonHashtags(DC_tweets$name)

## hashtags
##                #93KDay              #ADay2016        #brunchofidiots
##                      1                      1                      1
##         #CaratSelcaDay                  #CCCC  #CONGRATULATIONSHARRY
##                      1                      1                      1
##                #DCvTOR             #DevRelCon  #DreamvilleMusicVideo
##                      1                      1                      1
##    #IrritateMeIn4Words #ItsNoneOfYourBusiness              #LEMONADE
##                      1                      1                      1
##   #LetMeEntertainYouBy             #MentorIRL                 #NALCS
##                      1                      1                      1
##     #NashInMyrtleBeach              #NYRvsPIT        #RecordStoreDay
##                      1                      1                      1
##     #SignACastIn5Words               #SXonFOX
##                      1                      1

Search Twitter stream by subject

Search for tweets by subject using streamR package functions. The streamR functions interact with Twitter’s Streaming API to filter tweets by keywords, users, language, and location

filterStream
parseTweets

filterStream("ClintonTrump_tweets.json", track = c("Clinton", "Trump"),
locations = c(-125, 25, -66, 50), timeout = 60, oauth = twitCred)

#' parse .json file of tweets and convert parsed tweets to a data frame
ClintonTrump_tweets.df <- parseTweets("ClintonTrump_tweets.json", simplify = FALSE)
head(ClintonTrump_tweets.df)

#' print the amount of times Clinton and Trump are mentioned
Clinton_mentions <-length(grep("Clinton", ClintonTrump_tweets.df$text, ignore.case = TRUE))
Trump_mentions <-length(grep("Trump", ClintonTrump_tweets.df$text, ignore.case = TRUE))

sprintf("Clinton mentioned %d times in %d tweets", Clinton_mentions, nrow(ClintonTrump_tweets.df))
sprintf("Trump mentioned %d times in %d tweets", Trump_mentions, nrow(ClintonTrump_tweets.df))

## [1] "Clinton mentioned 397894 times in 5944511 tweets"

## [1] "Trump mentioned 1164798 times in 5944511 tweets"

Advanced

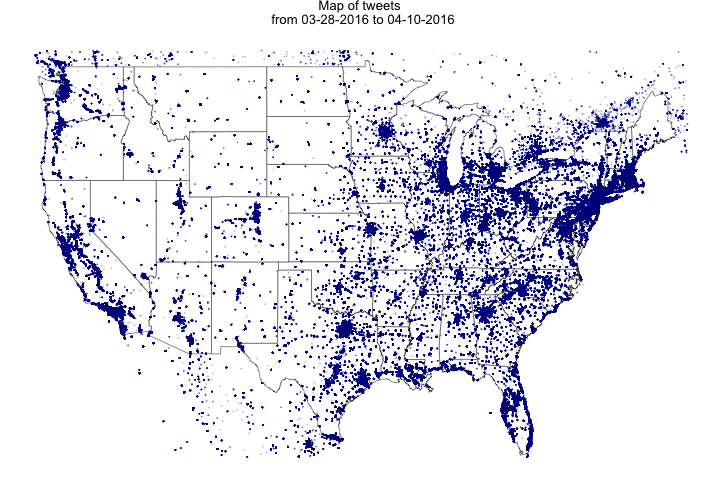

Map results

use filterStream to search by location

Twitter location parameters

map tweets with ggplot2 and grid packages

#' uncomment the following line the first time you run this file
#install.packages(c("ggplot2", "grid", "maps", "png", "lubridate"))
library(lubridate)
library(ggplot2)
library(grid)
library(maps)
library(png)

#' clean up tweets to include only english, alphanumeric tweets
#' subsets data frame of tweets to smallers subset of relevant variables
#' add tweet_timestamp column with lubridate package qualities
ClintonTrump_tweets.df <- clean_up_tweets(ClintonTrump_tweets.df)
ClintonTrump_tweets.df$tweet_timestamp <- sapply(ClintonTrump_tweets.df$created_at,tweet_time)

#' rearrange data by date
ClintonTrump_tweets.df<-arrange(ClintonTrump_tweets.df, tweet_timestamp)

#' find tweets start and end date
tweets_start<- strsplit(unlist(
    ClintonTrump_tweets.df$tweet_timestamp)[1], split =' ')[[1]][1]
tweets_end<-strsplit(unlist(
    ClintonTrump_tweets.df$tweet_timestamp[nrow(ClintonTrump_tweets.df)]), split =' ')[[1]][1]

#' a small percentage of users have location access enabled for their tweets
#' increase the timeout number to gather more tweets and increase geo-tagged tweets
map.data <- map_data("state")
points <- data.frame(x = as.numeric(ClintonTrump_tweets.df$place_lon),
                     y = as.numeric(ClintonTrump_tweets.df$place_lat))

points <- subset(points, y > 25 & y <50)
points<-subset(points, x> -125 & x< -66)

tweets.map<-ggplot(map.data) + ggtitle(sprintf("Map of tweets \n from %s to %s",
tweets_start, tweets_end)) + geom_map(aes(map_id = region),
map = map.data, fill = "white", color = "grey20", size = 0.25) +
expand_limits(x = map.data$long, y = map.data$lat) + theme(axis.line = element_blank(),
axis.text = element_blank(), axis.ticks = element_blank(), axis.title = element_blank(),
panel.background = element_blank(), panel.border = element_blank(),
panel.grid.major = element_blank(), plot.background = element_blank(),
plot.margin = unit(0 * c(-1.5, -1.5, -1.5, -1.5), "lines")) +
geom_point(data = points, aes(x = x, y = y), size = .1, alpha = 1/5, color = "darkblue")

#' save map as a .png
png(filename="tweets-map.png", height = 480 , width = 720, units = "px")
plot(tweets.map)
dev.off()

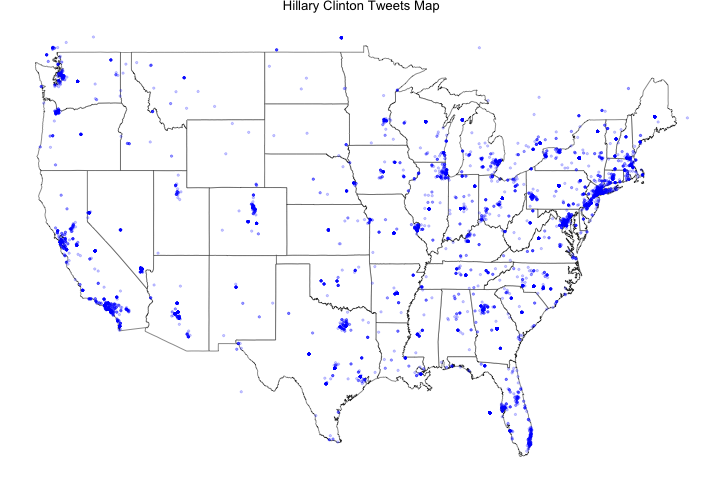

Map Clinton only tweets

#' Create a new data frame that only includes tweets that mentioned Clinton
Clinton_tweets <- ClintonTrump_tweets.df[grep("Clinton", ClintonTrump_tweets.df$text,
                                             ignore.case = TRUE), ]

Clinton_points <- data.frame(x = as.numeric(Clinton_tweets$place_lon),
                     y = as.numeric(Clinton_tweets$place_lat))

#' subset points to only include locations (roughly) within the United States
Clinton_points <- subset(Clinton_points, y > 25 & y <50)
Clinton_points<-subset(Clinton_points, x> -125 & x< -66)

Clinton_tweets.map<-ggplot(map.data) + ggtitle("Hillary Clinton Tweets Map") +
  geom_map(aes(map_id = region), map = map.data, fill = "white",
           color = "grey20", size = 0.25) + expand_limits(x = map.data$long, y = map.data$lat) +
  theme(axis.line = element_blank(), axis.text = element_blank(), axis.ticks = element_blank(),
        axis.title = element_blank(), panel.background = element_blank(), panel.border = element_blank(),
        panel.grid.major = element_blank(), plot.background = element_blank(),
        plot.margin = unit(0 * c(-1.5, -1.5, -1.5, -1.5), "lines")) +
  geom_point(data = Clinton_points, aes(x = x, y = y), size = .75, alpha = 1/5, color = "blue")

#' Save map of Clinton only tweets
png(filename="Clinton_tweets-map.png", height = 480 , width = 720, units = "px")
plot(Clinton_tweets.map)
dev.off()

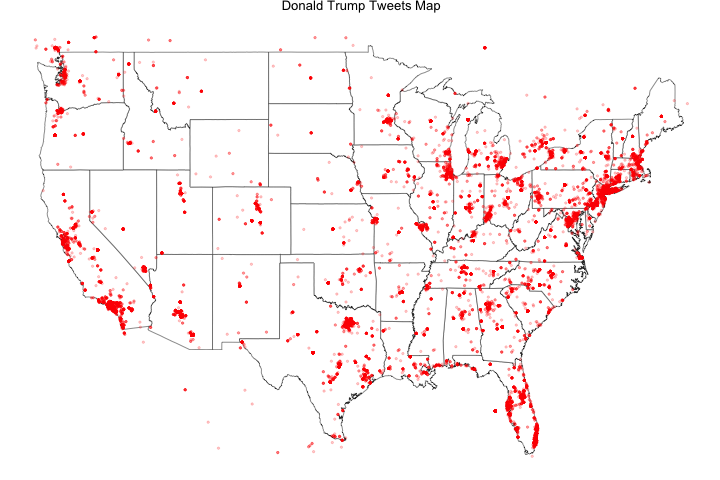

Map Trump only tweets

#' Create a new data frame that only includes tweets that mentioned Trump
Trump_tweets <- ClintonTrump_tweets.df[grep("Trump", ClintonTrump_tweets.df$text,
                                          ignore.case = TRUE), ]

Trump_points <- data.frame(x = as.numeric(Trump_tweets$place_lon),
                          y = as.numeric(Trump_tweets$place_lat))

#' subset points to only include locations (roughly) within the United States
Trump_points <- subset(Trump_points, y > 25 & y <50)
Trump_points<-subset(Trump_points, x> -125 & x< -66)

Trump_tweets.map<-ggplot(map.data) + ggtitle("Donald Trump Tweets Map") +
  geom_map(aes(map_id = region), map = map.data, fill = "white",
           color = "grey20", size = 0.25) + expand_limits(x = map.data$long, y = map.data$lat) +
  theme(axis.line = element_blank(), axis.text = element_blank(), axis.ticks = element_blank(),
        axis.title = element_blank(), panel.background = element_blank(), panel.border = element_blank(),
        panel.grid.major = element_blank(), plot.background = element_blank(),
        plot.margin = unit(0 * c(-1.5, -1.5, -1.5, -1.5), "lines")) +
  geom_point(data = Trump_points, aes(x = x, y = y), size = .75, alpha = 1/5, color = "red")

#' Save map of Trump only tweets
png(filename="Trump_tweets-map.png", height = 480 , width = 720, units = "px")
plot(Trump_tweets.map)
dev.off()

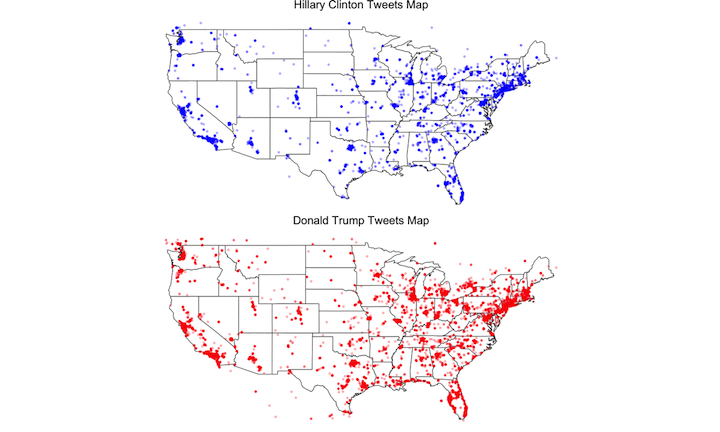

Compare Clinton and Trump tweet maps side-by-side

#' View Clinton and Trump maps side-by-side
grid.arrange(Clinton_tweets.map,Trump_tweets.map, ncol=2)
dev.off()

#' Save Clinton and Trump comparison map
require(gridExtra)
ggsave("combined_tweets-raw.png", arrangeGrob(Clinton_tweets.map,Trump_tweets.map), dpi = 300)

#' Improve comparison map image quality by rasterization
img <- readPNG("combined_tweets-raw.png")
grid.raster(img)
dev.off()

#' Save raster comparison map
png(filename="combined_tweets-map.png", height = 720 , width = 1200, units = "px")
grid.raster(img)
dev.off()

combined-tweets-map

Save all objects in your current workspace and read back from file in the future

save.image(file = "PAA_2016_Twitter.RData")

#' future R sessions will require you to reload necessary libraries
#' uncomment the command below to load saved objects in future workspace sessions
#load("PAA_2016_Twitter.RData")

References

R
RStudio is a free and open-source integrated development environment (IDE) for R
short R tutorial
Make a Twitter account
instructions to register phone with Twitter account
create a new application
Twitter’s Streaming API
Twitter’s API
Where on Earth Identifiers (WOEID) for locations
Twitter location parameters
streamR vignette by Pablo Barbera

Acknowledgements

I would like to thank workshop collaborators (Nina Cesare, Charles Lanfear, Joan Ryan and Emilio Zagheni) for their questions and feedback while creating this module. Additionally, comments and suggestions from Michele Cadigan, Connor Gilroy, Jerald Herting, Bernease Herman and Valentina Staneva improved the presentation and workshop materials.

--- title: "Social Media, Twitter API, and R" date: "2016-04-17" author: "Kivan Polimis" description: "A workshop on gathering, processing, and analyzing Twitter API data with R, created for the 2016 Population Association of America Annual Meeting." categories: [tutorial, python] image: "" draft: false ---  This post is a workshop that I created for a social media workshop during the 2016 Population Association of America Annual Meeting in Washington, D.C (April). All relevant code will eventually be available on <a href = "http://www.github.com/kpolimis" target = "_blank">my github</a> <hr> Introduction ============ We are going to learn various R functions for gathering, processing and analyzing Twitter API data. Our goal is to collect tweets by location and subject. This workshop is aimed at graduate students with some familiarity with R. The examples explored will gather tweets made in the Washington, D.C. area as well as tweets that mention presidential candidates Hillary Clinton and Donald Trump. If we have time, we will explore methods to map our results nationally and show where people are talking about the candidates.  Overview ======== 1. Setup 2. Obtain Twitter credentials 3. Install R packages 4. Search Twitter API 5. Map results (optional) Setup ===== ### Software Essential: <a href = "https://www.r-project.org/" target ="_blank">R</a> Recommended: <a href = "https://www.rstudio.com/products/rstudio/download/" target="_blank">RStudio</a> - RStudio is a free and open-source integrated development environment (IDE) for R If you have never used R before, or if you feel that you need a refresher, we recommend that you go over this <a href = "https://cran.r-project.org/doc/contrib/Torfs+Brauer-Short-R-Intro.pdf" target="_blank">short R tutorial</a> ### Obtain Twitter credentials 1. Create a <a href = "https://www.twitter.com/signup" target ="_blank">Twitter account</a> ![Twitter-Main](./02-TwitterSignUp1.png) 2. If you have a Twitter account, but it is not verified with a phone, you would need to verify the account, by adding a mobile phone number. Here is a link to the <a href = "https://support.twitter.com/articles/110250" target="_blank">instructions</a> 3. Create a <a href = "https://dev.twitter.com" target="_blank">new app</a> Scroll to the bottom of the page and select Manage Your Apps under the Tools column (see highlighted box below) ![Dev-SignIn](./08-TwitterDevSignIn2.png) - Fill in your App with the following information - The App name must be unique, edit "INITIALS" with your initials - Name: PAA 2016 Test App "INITIALS" - Description: Test Application for PAA 2016 Social Media and Demographic Methods Workshop - Website: <a href = "http://www.example.com" target = "_blank">http://www.example.com</a> - You should leave the "callback website" field empty ![Twitter-App2](./10-TwitterCreateApp2.png) 4. Obtain your consumer key, consumer secret, access token and access token secret. You will insert these credentials below - Select Keys and Access Tokens tab - Consumer Key and Consumer Secret are at the top of the page - Scroll to the bottom of the page to Token actions and create Access Token and Access Token Secret ### Install R packages You will need to have the following packages installed for the core of this workshop: - `twitteR` - `streamR` - `ROAuth` - `RCurl` - `dplyr` Before we can started, we need to clear our workspace, set a working directory, and load packages (you may need to install these packages the first time run this file). Fill in your working directory below by replacing "FILL ME IN" with the file path of your workshop folder ``` {.r} rm(list=ls()) setwd("FILL ME IN/PAA_2016_SMDM_Workshop/Twitter") #' uncomment the command below to install the necessary packages #install.packages(c("twitteR","streamR","ROAuth","dplyr","base64enc")) #' Pablo Barbera, author of streamR, has written additional functions for Twitter analysis #' uncomment the two commands below to download and add these functions to your environment with source #download.file("https://raw.githubusercontent.com/pablobarbera/social-media-workshop/master/functions.r", "functions_by_pablobarbera.R") #source("functions_by_pablobarbera.R") source("twitterFunctions.R") # few functions to clean data library(twitteR) library(streamR) library(ROAuth) library(RCurl) library(dplyr) library(base64enc) ``` ### Twitter API Authentication We will use two packages, streamR and twitteR, to retrieve tweets from the Twitter API. To access the functions in these packages, we will complete two authentication procedures. - `streamR` - Allows authorized applications to access <a href = "https://dev.twitter.com/streaming/overview" target="_blank"> Twitter's Streaming API</a> - real-time collection and monitoring of tweets - uses stored authentication - `twitteR` - Allows authorized applications to access <a href = "https://dev.twitter.com/rest/public" target ="_blank"> Twitter's API</a> - read and post tweets with API responses - uses direct authentication ``` {.r} #' Twitter credentials for streamR and twitteR authentication consumer_key <- "FILL ME IN" consumer_secret<- "FILL ME IN" access_token<- "FILL ME IN" access_token_secret<- "FILL ME IN" #' parameters and URLs for streamR authentication reqURL <- "https://api.twitter.com/oauth/request_token" accessURL<- "https://api.twitter.com/oauth/access_token" authURL<- "https://api.twitter.com/oauth/authorize" #' Note: You only need to create an authentication object for streamR once #' Microsoft Windows users need to uncomment the following command to download a cert file #download.file(url="http://curl.haxx.se/ca/cacert.pem", destfile="cacert.pem") #' create an object "cred" that will save the authenticated object for later sessions twitCred<- OAuthFactory$new(consumerKey=consumer_key,consumerSecret=consumer_secret, requestURL=reqURL,accessURL=accessURL,authURL=authURL) #' executing twitCred$handshake will redirect you to a website and provide your app a PIN #' insert the PIN in the R console after you run this line #' you can save authenticated credentials for later sessions #' for later use, uncomment the following command in a folder that contains twitCred.RData #load("twitCred.RData") twitCred$handshake(cainfo = system.file("CurlSSL", "cacert.pem", package = "RCurl")) save(twitCred, file = "twitCred.RData") #' setup direct Twitter authentication for twitteR functions #' you will be prompted to cache authentication token #' you will need to repeat this step unless you are running analysis from a location with a #' cached authentication token setup_twitter_oauth(consumer_key, consumer_secret, access_token, access_token_secret) ``` Twitter authentication for streamR (Windows output with `download.file` executed shown)\ ![Twitter-Cred-1](./16-TwitterCred1.png) Analysis ======== ### Search tweets by location Search for tweets by location using `twitteR` package functions. The functions below interact with the trend portion of the Twitter API. Use Where on Earth Identifiers <a href = "https://developer.yahoo.com/geo/geoplanet/guide/concepts.html" target ="_blank">(WOEID)</a> for locations - availableTrendLocations - getTrends View column names and small subset of observations with `glimpse` command ``` {.r} availableTrendLocations() woeid = availableTrendLocations() glimpse(woeid) #' get trending D.C. area tweets DC_tweets = getTrends(2514815) glimpse(DC_tweets) ``` ``` {.r} #' trending hashtags head(DC_tweets$name) ``` ## [1] "Rockets" "Dwight Howard" "Paul George" "#MentorIRL" ## [5] "Raptors" "#DCvTOR" ``` {.r} getCommonHashtags(DC_tweets$name) ``` ## hashtags ## #93KDay #ADay2016 #brunchofidiots ## 1 1 1 ## #CaratSelcaDay #CCCC #CONGRATULATIONSHARRY ## 1 1 1 ## #DCvTOR #DevRelCon #DreamvilleMusicVideo ## 1 1 1 ## #IrritateMeIn4Words #ItsNoneOfYourBusiness #LEMONADE ## 1 1 1 ## #LetMeEntertainYouBy #MentorIRL #NALCS ## 1 1 1 ## #NashInMyrtleBeach #NYRvsPIT #RecordStoreDay ## 1 1 1 ## #SignACastIn5Words #SXonFOX ## 1 1 ### Search Twitter stream by subject Search for tweets by subject using `streamR` package functions. The `streamR` functions interact with Twitter's Streaming API to filter tweets by keywords, users, language, and location - `filterStream` - `parseTweets` ``` {.r} filterStream("ClintonTrump_tweets.json", track = c("Clinton", "Trump"), locations = c(-125, 25, -66, 50), timeout = 60, oauth = twitCred) #' parse .json file of tweets and convert parsed tweets to a data frame ClintonTrump_tweets.df <- parseTweets("ClintonTrump_tweets.json", simplify = FALSE) head(ClintonTrump_tweets.df) #' print the amount of times Clinton and Trump are mentioned Clinton_mentions <-length(grep("Clinton", ClintonTrump_tweets.df$text, ignore.case = TRUE)) Trump_mentions <-length(grep("Trump", ClintonTrump_tweets.df$text, ignore.case = TRUE)) sprintf("Clinton mentioned %d times in %d tweets", Clinton_mentions, nrow(ClintonTrump_tweets.df)) sprintf("Trump mentioned %d times in %d tweets", Trump_mentions, nrow(ClintonTrump_tweets.df)) ``` ## [1] "Clinton mentioned 397894 times in 5944511 tweets" ## [1] "Trump mentioned 1164798 times in 5944511 tweets" Advanced ======== ### Map results use `filterStream` to search by location - <a href = "http://dev.twitter.com/docs/streaming-apis/parameters#locations" target ="_blank">Twitter location parameters</a> map tweets with `ggplot2` and `grid` packages ``` {.r} #' uncomment the following line the first time you run this file #install.packages(c("ggplot2", "grid", "maps", "png", "lubridate")) library(lubridate) library(ggplot2) library(grid) library(maps) library(png) #' clean up tweets to include only english, alphanumeric tweets #' subsets data frame of tweets to smallers subset of relevant variables #' add tweet_timestamp column with lubridate package qualities ClintonTrump_tweets.df <- clean_up_tweets(ClintonTrump_tweets.df) ClintonTrump_tweets.df$tweet_timestamp <- sapply(ClintonTrump_tweets.df$created_at,tweet_time) #' rearrange data by date ClintonTrump_tweets.df<-arrange(ClintonTrump_tweets.df, tweet_timestamp) #' find tweets start and end date tweets_start<- strsplit(unlist( ClintonTrump_tweets.df$tweet_timestamp)[1], split =' ')[[1]][1] tweets_end<-strsplit(unlist( ClintonTrump_tweets.df$tweet_timestamp[nrow(ClintonTrump_tweets.df)]), split =' ')[[1]][1] #' a small percentage of users have location access enabled for their tweets #' increase the timeout number to gather more tweets and increase geo-tagged tweets map.data <- map_data("state") points <- data.frame(x = as.numeric(ClintonTrump_tweets.df$place_lon), y = as.numeric(ClintonTrump_tweets.df$place_lat)) points <- subset(points, y > 25 & y <50) points<-subset(points, x> -125 & x< -66) tweets.map<-ggplot(map.data) + ggtitle(sprintf("Map of tweets \n from %s to %s", tweets_start, tweets_end)) + geom_map(aes(map_id = region), map = map.data, fill = "white", color = "grey20", size = 0.25) + expand_limits(x = map.data$long, y = map.data$lat) + theme(axis.line = element_blank(), axis.text = element_blank(), axis.ticks = element_blank(), axis.title = element_blank(), panel.background = element_blank(), panel.border = element_blank(), panel.grid.major = element_blank(), plot.background = element_blank(), plot.margin = unit(0 * c(-1.5, -1.5, -1.5, -1.5), "lines")) + geom_point(data = points, aes(x = x, y = y), size = .1, alpha = 1/5, color = "darkblue") #' save map as a .png png(filename="tweets-map.png", height = 480 , width = 720, units = "px") plot(tweets.map) dev.off() ``` ![tweets-map](./tweets-map.png) Map Clinton only tweets ``` {.r} #' Create a new data frame that only includes tweets that mentioned Clinton Clinton_tweets <- ClintonTrump_tweets.df[grep("Clinton", ClintonTrump_tweets.df$text, ignore.case = TRUE), ] Clinton_points <- data.frame(x = as.numeric(Clinton_tweets$place_lon), y = as.numeric(Clinton_tweets$place_lat)) #' subset points to only include locations (roughly) within the United States Clinton_points <- subset(Clinton_points, y > 25 & y <50) Clinton_points<-subset(Clinton_points, x> -125 & x< -66) Clinton_tweets.map<-ggplot(map.data) + ggtitle("Hillary Clinton Tweets Map") + geom_map(aes(map_id = region), map = map.data, fill = "white", color = "grey20", size = 0.25) + expand_limits(x = map.data$long, y = map.data$lat) + theme(axis.line = element_blank(), axis.text = element_blank(), axis.ticks = element_blank(), axis.title = element_blank(), panel.background = element_blank(), panel.border = element_blank(), panel.grid.major = element_blank(), plot.background = element_blank(), plot.margin = unit(0 * c(-1.5, -1.5, -1.5, -1.5), "lines")) + geom_point(data = Clinton_points, aes(x = x, y = y), size = .75, alpha = 1/5, color = "blue") #' Save map of Clinton only tweets png(filename="Clinton_tweets-map.png", height = 480 , width = 720, units = "px") plot(Clinton_tweets.map) dev.off() ``` ![Clinton-tweets-map](./Clinton_tweets-map.png) Map Trump only tweets ``` {.r} #' Create a new data frame that only includes tweets that mentioned Trump Trump_tweets <- ClintonTrump_tweets.df[grep("Trump", ClintonTrump_tweets.df$text, ignore.case = TRUE), ] Trump_points <- data.frame(x = as.numeric(Trump_tweets$place_lon), y = as.numeric(Trump_tweets$place_lat)) #' subset points to only include locations (roughly) within the United States Trump_points <- subset(Trump_points, y > 25 & y <50) Trump_points<-subset(Trump_points, x> -125 & x< -66) Trump_tweets.map<-ggplot(map.data) + ggtitle("Donald Trump Tweets Map") + geom_map(aes(map_id = region), map = map.data, fill = "white", color = "grey20", size = 0.25) + expand_limits(x = map.data$long, y = map.data$lat) + theme(axis.line = element_blank(), axis.text = element_blank(), axis.ticks = element_blank(), axis.title = element_blank(), panel.background = element_blank(), panel.border = element_blank(), panel.grid.major = element_blank(), plot.background = element_blank(), plot.margin = unit(0 * c(-1.5, -1.5, -1.5, -1.5), "lines")) + geom_point(data = Trump_points, aes(x = x, y = y), size = .75, alpha = 1/5, color = "red") #' Save map of Trump only tweets png(filename="Trump_tweets-map.png", height = 480 , width = 720, units = "px") plot(Trump_tweets.map) dev.off() ``` ![Trump-tweets-map](./Trump_tweets-map.png) Compare Clinton and Trump tweet maps side-by-side ``` {.r} #' View Clinton and Trump maps side-by-side grid.arrange(Clinton_tweets.map,Trump_tweets.map, ncol=2) dev.off() #' Save Clinton and Trump comparison map require(gridExtra) ggsave("combined_tweets-raw.png", arrangeGrob(Clinton_tweets.map,Trump_tweets.map), dpi = 300) #' Improve comparison map image quality by rasterization img <- readPNG("combined_tweets-raw.png") grid.raster(img) dev.off() #' Save raster comparison map png(filename="combined_tweets-map.png", height = 720 , width = 1200, units = "px") grid.raster(img) dev.off() ``` ![combined-tweets-map](./combined_tweets-map.png) Save all objects in your current workspace and read back from file in the future ``` {.r} save.image(file = "PAA_2016_Twitter.RData") #' future R sessions will require you to reload necessary libraries #' uncomment the command below to load saved objects in future workspace sessions #load("PAA_2016_Twitter.RData") ``` References ========== 1. <a href = "https://www.r-project.org/" target ="_blank">R</a> 2. <a href = "https://www.rstudio.com/products/rstudio/download/" target="_blank">RStudio</a> is a free and open-source integrated development environment (IDE) for R 3. <a href = "https://cran.r-project.org/doc/contrib/Torfs+Brauer-Short-R-Intro.pdf" target="_blank">short R tutorial</a> 4. Make a <a href = "https://www.twitter.com/signup" target ="_blank">Twitter account</a> 5. <a href = "https://support.twitter.com/articles/110250" target="_blank">instructions</a> to register phone with Twitter account 6. create a <a href = "https://dev.twitter.com" target="_blank">new application</a> 7. <a href = "https://dev.twitter.com/streaming/overview" target="_blank">Twitter's Streaming API</a> 8. <a href ="https://dev.twitter.com/rest/public" target ="_blank">Twitter's API</a> 9. Where on Earth Identifiers <a href = "https://developer.yahoo.com/geo/geoplanet/guide/concepts.html" target ="_blank">(WOEID)</a> for locations 10. <a href = "http://dev.twitter.com/docs/streaming-apis/parameters#locations" target ="_blank">Twitter location parameters</a> 11. <a href = "http://pablobarbera.com/code/streamR.html" target="_blank">streamR vignette</a> by Pablo Barbera Acknowledgements ================ I would like to thank workshop collaborators (Nina Cesare, Charles Lanfear, Joan Ryan and Emilio Zagheni) for their questions and feedback while creating this module. Additionally, comments and suggestions from Michele Cadigan, Connor Gilroy, Jerald Herting, Bernease Herman and Valentina Staneva improved the presentation and workshop materials.
